Overview

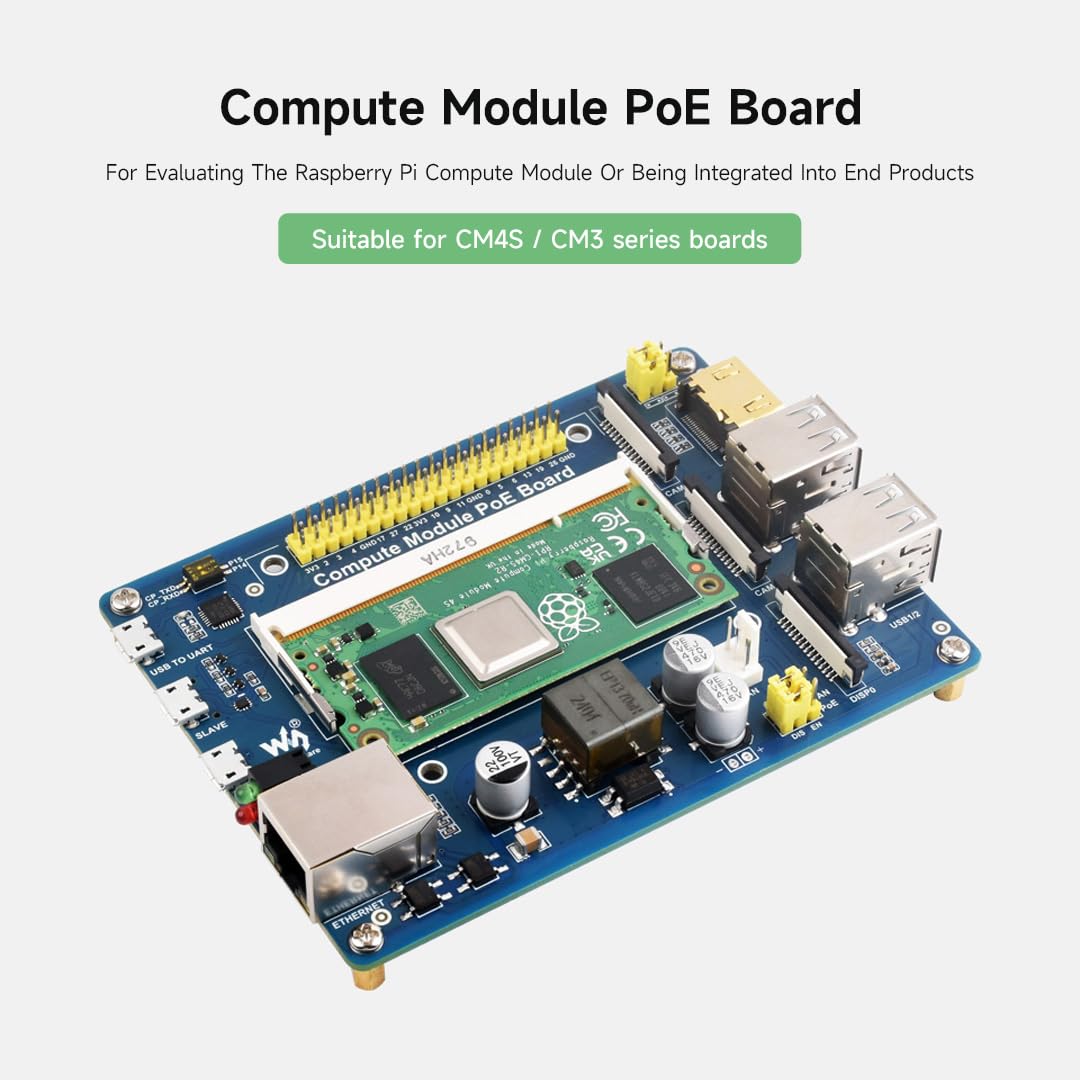

The Compute Module PoE Board is a development board which you can plug a Raspberry Pi Compute Module into, and make use of the resources of Pi more flexibly. With the PoE (Power over Ethernet) feature, and versatile onboard peripheral interfaces, it is suitable for evaluating the Raspberry Pi compute module, also is an ideal choice for end products.

Features

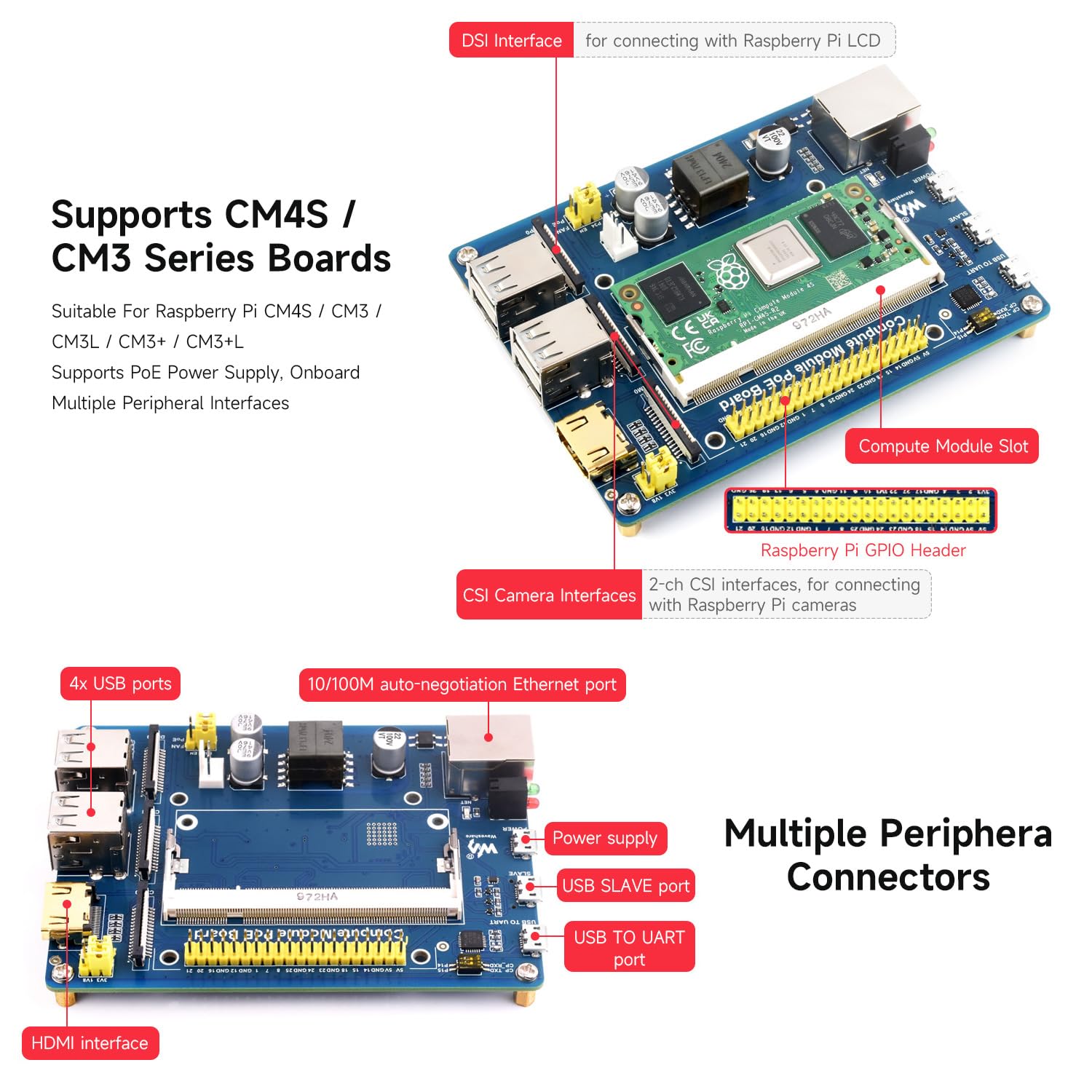

Raspberry Pi GPIO header, for connecting sorts of Raspberry Pi HATs
10/100M auto-negotiation Ethernet port, with PoE enabled
4x USB ports, allows connecting more USB devices
2x CSI camera interfaces
Onboard HDMI / DSI interfaces for connecting displays
Onboard USB TO UART, for serial debugging

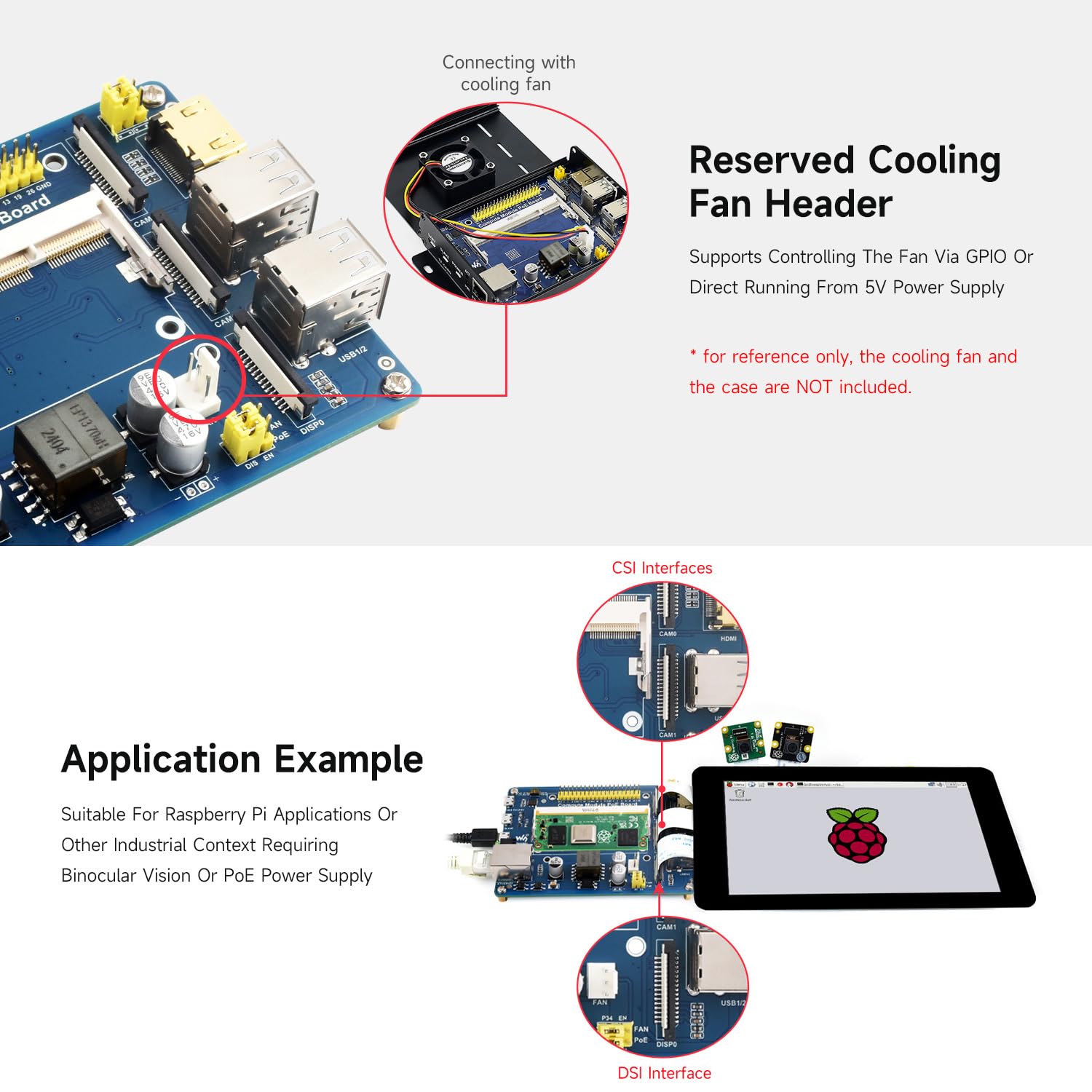

Cooling fan interface, auto run on power up OR controlled by IO pins
Adopts isolated SMPS (Switching Mode Power Supply)

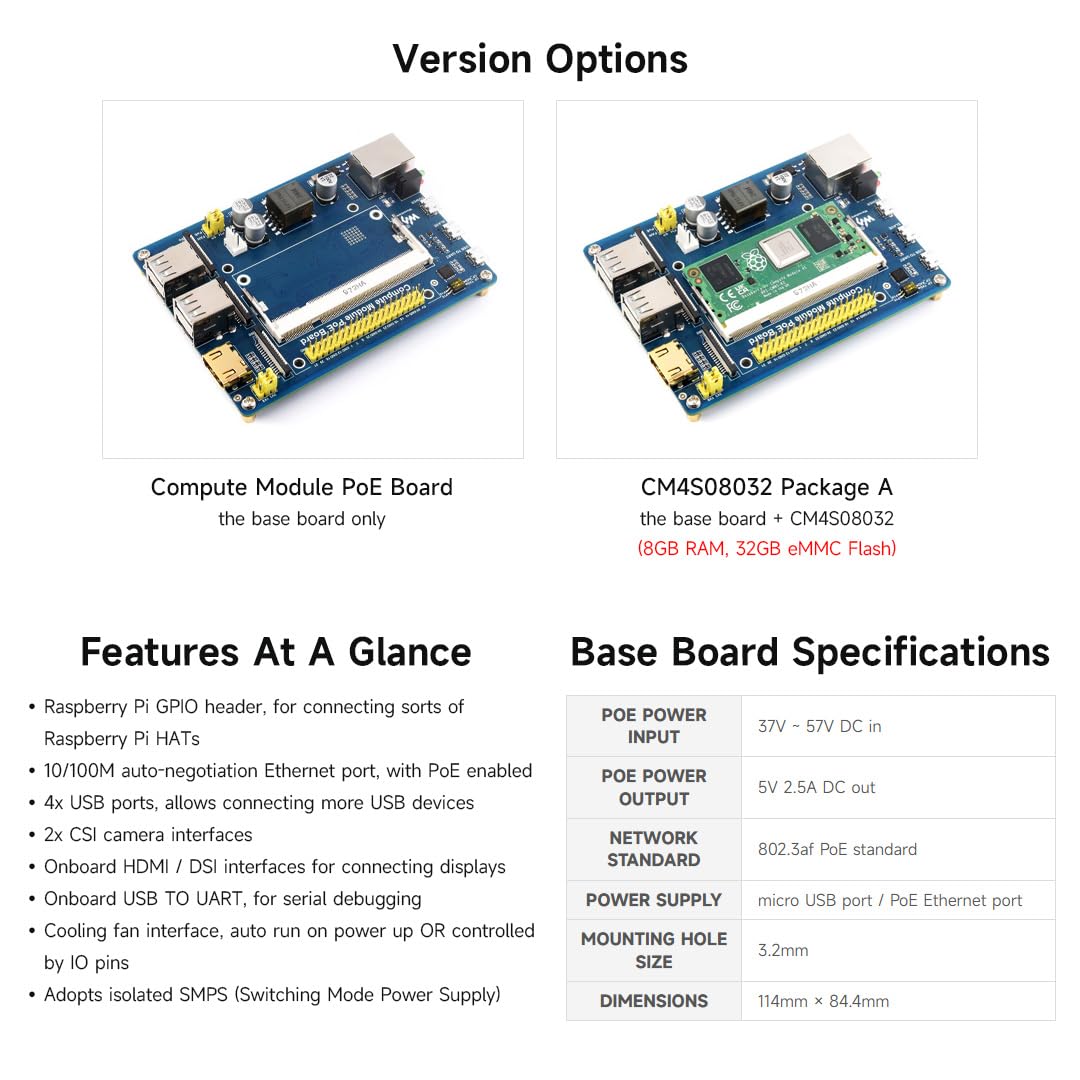

Specifications

Power supply: micro USB port / PoE Ethernet port
PoE power input: 37V ~ 57V DC in
PoE power output: 5V 2.5A DC out
Network standard: 802.3af PoE standard

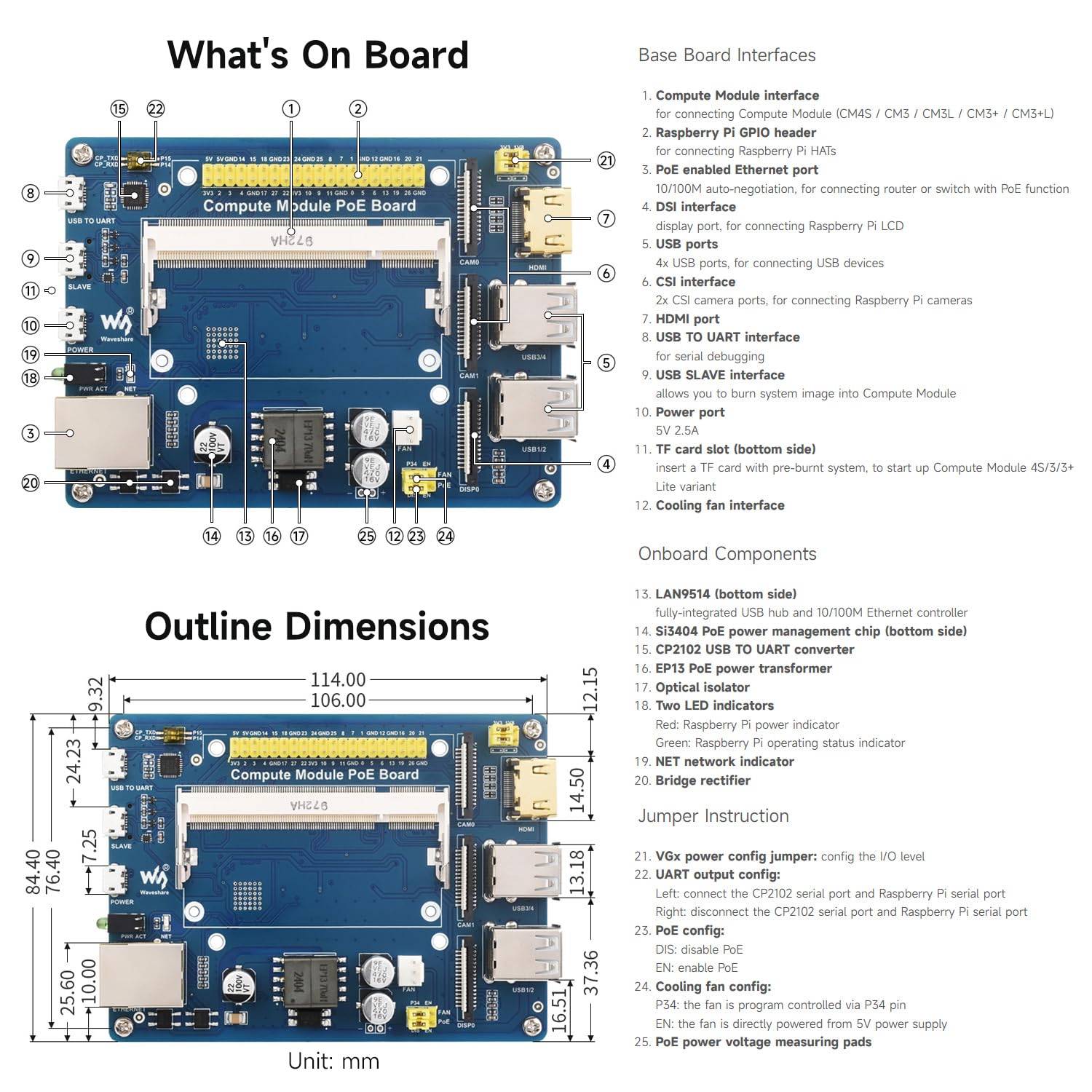

Dimensions: 114mm × 84.4mm
Mounting hole size: 3.2mm

Development Resources

Wiki : www.waveshare.com/wiki/Compute_Module_PoE_Board

Brand	Waveshare
Product Dimensions	11.4 x 8.44 x 11.4 cm; 10 g
Item model number	Compute Module PoE Board
Manufacturer	Waveshare
Series	Compute Module IO Board with PoE Feature
Color	Compute Module PoE Board
Processor Brand	Raspberry Pi
Processor Type	ARM 610
Processor Count	1
RAM Size	1 GB
Memory Technology	DDR3
Maximum Memory Supported	1 GB
Wireless Type	802.11ac
Number of USB 2.0 Ports	4
Operating System	Raspberry Pi OS
Are Batteries Included	No
Item Weight	10 g
